Variable speed Drives, AC and DC Motors — Ex-Ed can supply you with a full range of control systems, installation options and services.

Replacing Obsolete Single Phase DC Drives

With Control Techniques no longer producing single phase DC Drives, this guide will help you find a replacement.

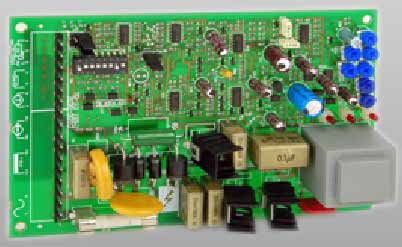

The Control Techniques Puma SM is a Non Isolated, DC motor speed controller, designed for the control of either permanent magnet or shunt wound motors up to 0.37kW (3.0Amps).

Sprint Electric 370. 0.55kW (3.7Amps) Non Isolated. Simple reliable and compact.

Sprint Electric 400. 0.55kW (4.0Amps) Non Isolated. Compact single phase DC controller. The model 400's terminal's are compatible with the Control Technique Puma's.

Sprint Electric 340. 0.55kW (3.4Amps) Non Isolated. Latest technology contained in an ultra compact DIN rail mounting package aids quick installation.

Parker SSD 506. 0.37kW (3.0Amps) Non Isolated. Feature packed, minimum footprint design, DIN rail mounted.

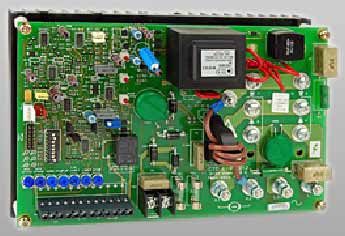

The Control Techniques Lynx SM series of DC motor speed controllers are designed for the control of either permanent magnet or shunt wound motors up to 7.5kW (30Amps). Fully isolated, non regenerative controller. Available in 8, 16 or 32 Amp models.

Sprint Electric 3200i. Up to 11kW (48Amps). Fully Isolated. Available in 8, 16, 32 and 48Amp models. The 3200i's terminals are compatible with the Control Technique Lynx's.  Easy to access control terminals, extensive features and I/O make the 3200i an industry standard.

Parker SSD 512C. Up to 7.5kW (32Amps). Isolated control circuitry and a host of user facilities make the 512C ideal for low power single motor or multi drive applications. Available in 4, 8, 16 and 32Amp models.

The Control Techniques Cheetah SM is a non isolated, DC motor speed controller, designed for the control of either permanent magnet or shunt wound motors up to 1.5kW (11.0Amps). Available as chassis mounted (IP00) or enclosed module (IP40) for wall mounting.

Sprint Electric 1220. 1.8kW (12.2Amps) Non Isolated, single quadrant controller.

Sprint Electric 1200E. 1.8kW (12Amps) Non Isolated, single quadrant controller. Like the Cheetah SM, the 1200 is also available as an enclosed module. In a sturdy metal IP20 enclosure and with its own on/off switch and set speed potentiometer, the 1200E is quick and easy to install.

Sprint Electric 1200. 1.8kW (12Amps) Non Isolated, single quadrant controller. Unidirectional motor control in an ultra compact DIN rail mounting package to aid quick installation.

The Control Techniques 4Q2 DC motor speed controllers are designed to provide full four quadrant control of either permanent magnet or shunt wound motors up to 7.5kW (30Amps). A fully isolated regenerative controller, available in 12 or 30Amp models.

Sprint Electric 3600i. 9.5W (36Amps) Isolated, four quadrant, regenerative controller. Five models are available up to 36Amps and either 240V or 415V supply.

Parker SSD 514C. Up to 7.5kW (32Amps). Four quadrant, regenerative controller with isolated control circuitry. Available in 4, 8, 16 or 32Amp models and selectable 240 / 415 input supply voltage.
